Magnetar AI
21.5-Inch High Brightness Outdoor Display
The 21-inch High Brightness Outdoor Display Magnetar is IP65-rated, featuring a dust and water-resistant front glass, making it an industrial-grade solution for outdoor digital signage and self-order kiosks. Its 1000 nits high brightness touchscreen ensures exceptional visibility in bright outdoor environments, while the fingerprint and scratch-resistant 6H touch glass provides seamless and accurate touch response for demanding applications like EV charging stations and industrial outdoor touchscreens. Cost-effective for system integrators, this Android-powered, sunlight-readable touchscreen is designed with reliability from the start, offering 24/7 performance for indoor and outdoor applications, including ticketing kiosk monitors and healthcare displays.
Interactive
Touchscreen Features.
Specifications.
Panel Info
Size | 21.5" |
Resolution | 1920 x 1080 |
Brightness | 1000cd/m² |
Contrast | 5000:1 |
Aspect Ratio | 16:9 |
Active Display Area | 476.64 x 268.11 mm |
Viewing Angle | 89°/89°/89°/89° |
Impact Rating | IK07 |
Response Time | 25ms |
Touch Data
Touch Tech | G+G Capacitive Touch 10pt IP65 Rating Optical bonded capacitive touch (touch on water or latex glove) UV Protection |
Hardness Of Surface | ＞6H |
Touch method | Finger touch, Capacitive Stylus |
Transparency | ≥86% |
Touch Glass Thickness | 2.7mm |
Hardware & OS
CPU | Quad-core Cortex-A72 up to 2.2GHz, Quad-core Cortex-A53 up to1.8GHz |
RAM | 4GB LPDDR4X |
ROM | 32GB eMMC |
OS | Android 15 |
GPU | ARM Mali-G52, touted as 3x faster than the Mali-T860MP4 in the older RK3399 |
NPU | 6 TOPS (Trillion Operations Per Second) of processing power |
Software

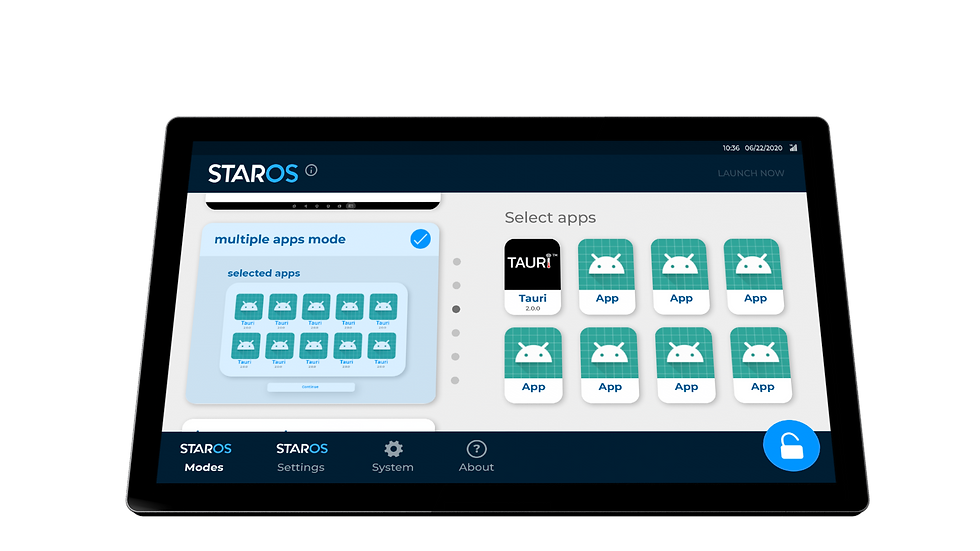

STAROS | License Free Kiosk Mode App and Multi App Mode, Auto Lockdown, Browser and Media Mode |
STAR CONTROL(OPTIONAL) | Remote Mobile Device Management |
STARTOOL | Open Source API |
Musea | • Digital Signage Software • Remote Creating and Managing Interactive Signage Content Remotely |
Video/Image
Video Format | H.265, VP8, RV, WMV, AVS, H.263, Mpeg4, Up to 4K decoding, HTML5, Flash 10 |
Audio Format | MP3, WMA, AAC, etc. |
Image Format | JPEG, BMP, PNG |
Audio/Communication
Speaker | 2 x 5W |
Bluetooth | BT 5.0 |
Sensor | 1 x Ambient light and Proximity Sensor |
WIFI | 802.11 a/b/g/n/ac/ax WiFi6 2.4GHz & 5GHz (Three antenna) |
Ethernet | 1 x RJ45, 100/1000 LAN |
General
Color | Metal Outdoor Housing with Black Matte Paint |
Chassis | IP65 front IPX2 rear |
I/O | DC IN x 1; Audio out x 1; USB2.0×1; USB3.0×1; TYPE-C OTG×1; TF CARD×1; RJ45×1 ; 1×UART; 2×GPIO; 1×Wiegand; 1×VCC-5V |
Included in Box | MAGNETAR Tablet, Power Adaptor, Power cable, Adjustable mounting brackets |
POE | N/A |
Operating Environment | -10℃—60℃ |
Language | Multi Language |
Power Management
Power supply unit | External |
Power supply | 12V 5A |
Power usage | 39W typical, 4W stand by, 1W off mode |
Sustainability
Regulations | RoHS support |
REACH SVHC | REACH does not contain SVHC above 0.1%: Lead |
Mounting & Dimensions
VESA | VESA 100 |
Dimensions ( LxWXH) | 523.7×315.18×41.68mm |
Weight | 5.9kg |
Box size / each pc(LxWXH) | 583 x 115 x 382mm |
Master Box size ( LXWXH) | 604 x 248 x 406mm |
Master Box Weight | 13.8kg |
Pieces/ Carton | 2pc. |
Amazing accessories
to complete your perfect kiosk touchscreen computers.
The outdoor Touchscreen Computers offers a wide assortment of optional peripherals such as magnetic card swipe, RFID/NFC readers and barcodes that enables flexibility for rigorous use in continuous public use for fitness consoles, system terminals, retail e-catalog, employee access control, corporate check in, restaurant self ordering, hotel check in, etc.
