Magnetar AI
10-Inch High Brightness Outdoor Display
The Glory Star Magnetar 10-inch high brightness outdoor display is IP65-rated, with a dust and water-resistant front glass, making it a true industrial-grade solution for outdoor kiosk displays and industrial automation. Equipped with a 1000 nits high brightness touchscreen, this rugged outdoor monitor ensures vibrant visuals even in direct sunlight. Its fingerprint and scratch-resistant 6H touch glass delivers seamless and accurate touch response, ideal for demanding applications like self-order kiosks and EV charging touchscreens.
Cost-effective for system integrators, this Android-powered, sunlight-readable touchscreen is designed with reliability from the start, offering 24/7 performance for both indoor and outdoor applications, including ticketing kiosk monitors and digital signage displays.
Interactive
Touchscreen Features.
Touch on Water Technology
Accurate touch response even with water or latex gloves on the front glass.
Connectivity
3x USB 3.0, 1x USB 2.0, 1x RJ45 (10/100/1000Mbps), VGA, and audio ports for Linux touchscreen integration.
Rugged Design with IK07 Impact Rating
Built for harsh environments and continuous use
Connectivity
Android Version
Windows Version
MUSEA:
Digital Signage Software
MUSEA is a cloud-based digital signage software for creating and managing interactive signage content remotely. With drag-and-drop functionality and support for multiple file types, it integrates with Star Control for centralized management across retail, hospitality, and education.
Specifications.
Panel Info
Touch Data
Touch Tech | G+G Capacitive Touch 10pt IP65 Rating Optical bonded capacitive touch (touch on water or latex glove) UV Protection |
Hardness Of Surface | ≥ 6H |
Touch method | Finger touch, Capacitive Stylus |
Transparency | ≥85% |
Touch Glass Thickness | 2.75mm |
Hardware & OS
CPU | Quad-core Cortex-A72 up to 2.2GHz, Quad-core Cortex-A53 up to1.8GHz |
RAM | 4GB LPDDR4X |
ROM | 32GB eMMC |
OS | Android 15 |
GPU | ARM Mali-G52, touted as 3x faster than the Mali-T860MP4 in the older RK3399 |
NPU | 6 TOPS (Trillion Operations Per Second) of processing power |
Software
STAROS | License Free Kiosk Mode App and Multi App Mode, Auto Lockdown, Browser and Media Mode |
STAR CONTROL(OPTIONAL) | Remote Mobile Device Management |
STARTOOL | Open Source API |
Musea | • Digital Signage Software • Remote Creating and Managing Interactive Signage Content Remotely |
Video/Image
Video Format | H.265, VP8, RV, WMV, AVS, H.263, Mpeg4, Up to 4K decoding, HTML5, Flash 10 |
Audio Format | MP3, WMA, AAC, etc. |
Image Format | JPEG, BMP, PNG |
Audio/Communication
Speaker | 2 x 5W |
Bluetooth | BT 5.0 |
Sensor | 1 x Ambient light and Proximity Sensor |
WIFI | 802.11 a/b/g/n/ac/ax WiFi6 2.4GHz & 5GHz (Three antenna) |
Ethernet | 1 x RJ45, 100/1000 LAN |
General
Color | Metal Outdoor Housing with Black Matte Paint |
Chassis | IP65 front IPX2 rear |
I/O | DC IN x 1; Audio out x 1; USB2.0×1; USB3.0×1; TYPE-C OTG×1; TF CARD×1; RJ45×1 ; 1×UART; 2×GPIO; 1×Wiegand; 1×VCC-5V |

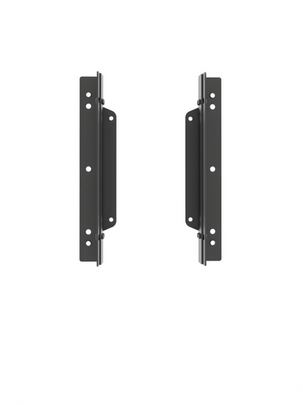

Included in Box | MAGNETAR Tablet, Power Adaptor, Power cable, Adjustable mounting brackets |
POE | N/A |
Operating Environment | -10℃—60℃ |
Language | Multi Language |
Power Management
Power supply unit | External |
Power supply | 12V 5A |
Power usage | 12.6W typical, 2.8W stand by, 0.3W off mode |
Sustainability
Regulations | RoHS support |
REACH SVHC | REACH does not contain SVHC above 0.1%: Lead |
Mounting & Dimensions
VESA | VESA 100 |
Dimensions ( LxWXH) | 278.56×197.2×36.8mm |
Weight | 2.1kg |
Box size / each pc(LxWXH) | 396×241×86mm |
Master Box size ( LXWXH) | 506×410×288mm |
Master Box Weight | 15.9kg |
Pieces/ Carton | 6pc. |
Amazing accessories
to complete your perfect kiosk touchscreen computers.
The outdoor Touchscreen Computers offers a wide assortment of optional peripherals such as magnetic card swipe, RFID/NFC readers and barcodes that enables flexibility for rigorous use in continuous public use for fitness consoles, system terminals, retail e-catalog, employee access control, corporate check in, restaurant self ordering, hotel check in, etc.
Look into
Magnetar AI
Ideal Applications.
Outdoor Kiosk Displays
Perfect for self-order kiosks in restaurants or retail settings.
EV Charging Touchscreens
Reliable interface for electric vehicle charging stations.
Industrial Automation
Durable displays for control panels in harsh factory environments.
Healthcare Displays
Hygienic, glove-friendly touchscreens for medical settings.
Ticketing Kiosk Monitors
Streamlined ticketing solutions for transportation or events.
Outdoor Digital Signage
Interactive kiosks with AI recommendation engines and customer analytics via 2MP camera and touch interface for personalized shopping.
