Magnetar Monitor

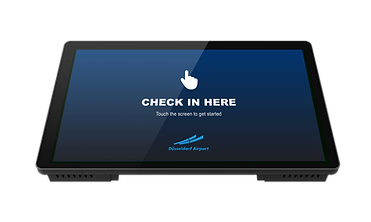

15-Inch Outdoor Touchscreen Monitor
The 15-Inch Magnetar Outdoor Touchscreen Monitor is designed to deliver exceptional performance in outdoor environments. With its high brightness of 1000 cd/m², this monitor ensures visibility even in direct sunlight, making it an ideal choice for various outdoor applications. Its rugged construction features an IP65 rating, providing complete protection against dust and water, enabling reliable operation in challenging weather conditions.
Equipped with advanced G+G capacitive touch technology, it supports up to 10-point touch, allowing for seamless interaction. The monitor is perfect for installations where user engagement is essential, such as kiosks, signage, and information displays.
Interactive
Touchscreen Features.
Glove-Compatible & Wet-Hand Touch
Optical-bonded 10-point PCAP touch works reliably with latex gloves, wet fingers, or styluses—perfect for industrial, medical, or rainy environments.
Rugged IP65 + IK07 Protection
Fully sealed front panel resists dust, water jets, and moderate impacts/vandalism; UV-resistant metal chassis for long-term outdoor reliability.
Wide Temperature Operation (-10°C to 60°C)
Performs consistently in extreme heat, cold, or fluctuating climates without condensation or failure.

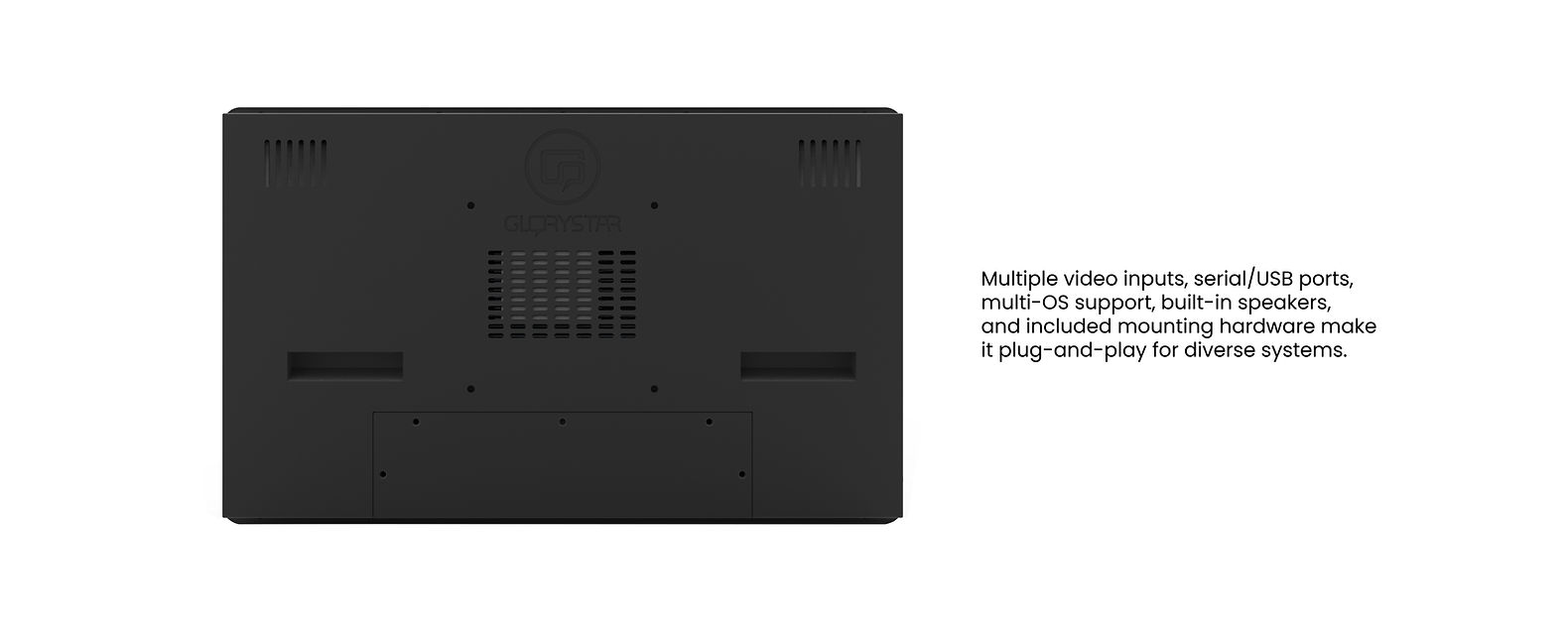

Versatile & Easy Integration
MUSEA:
Digital Signage Software
MUSEA is a cloud-based digital signage software for creating and managing interactive signage content remotely. With drag-and-drop functionality and support for multiple file types, it integrates with Star Control for centralized management across retail, hospitality, and education.

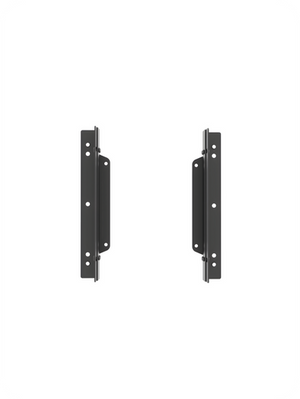

Mit diesen verstellbaren Montagehalterungen können Integratoren den wetterfesten Magnetar-Touchscreen bündig mit Ihren Gehäuseintegrationen installieren und platzieren.
Specifications.
Panel Info
Size | 15.6" |
Resolution | 1920 x 1280 |
Brightness | 1000cd/m² |
Contrast | 1000:1 |
Aspect Ratio | 16:9 |
Active Display Area | 344.16 x 193.59mm |
Viewing Angle | 89°/89°/89°/89° |
Response Time | 25ms |
Impact Rating | IK07 |
Touch Data
Touch Tech | G+G Capacitive Touch 10pt IP65 Rating Optical bonded capacitive touch (touch on water or latex glove) UV Protection |
Hardness Of Surface | ≥ 6H |
Touch method | Finger touch, Capacitive Stylus |
Transparency | ≥86% |
Touch Glass Thickness | 2.7mm |
Bonded Panel | Yes |
General
Color | Metal Outdoor Housing with Black Matte Paint |
Chassis | IP65 Front, IPX2 Rear |
I/O | RS232, USB 2.0 |
Display Input | VGA, DV1, 1 x 12 DC In |
Buttons | Power, Plus, Minus, Menu, Exit |
System Support | Android, Windows and MAC OS |
Included in Box | Magnetar Touchscreen, Power Adaptor, Power Cable, Adjustable Mounting Brackets |
Power Input | AC 100-240V, 50/60Hz |
Operating System | -10℃—60℃ |
Language | Multi-Language |
Mounting & Dimensions
Amazing accessories
to complete your perfect kiosk touchscreen computers.
The outdoor Touchscreen Computers offers a wide assortment of optional peripherals such as magnetic card swipe, RFID/NFC readers and barcodes that enables flexibility for rigorous use in continuous public use for fitness consoles, system terminals, retail e-catalog, employee access control, corporate check in, restaurant self ordering, hotel check in, etc.
Look into
Magnetar Monitor
Ideal Applications.

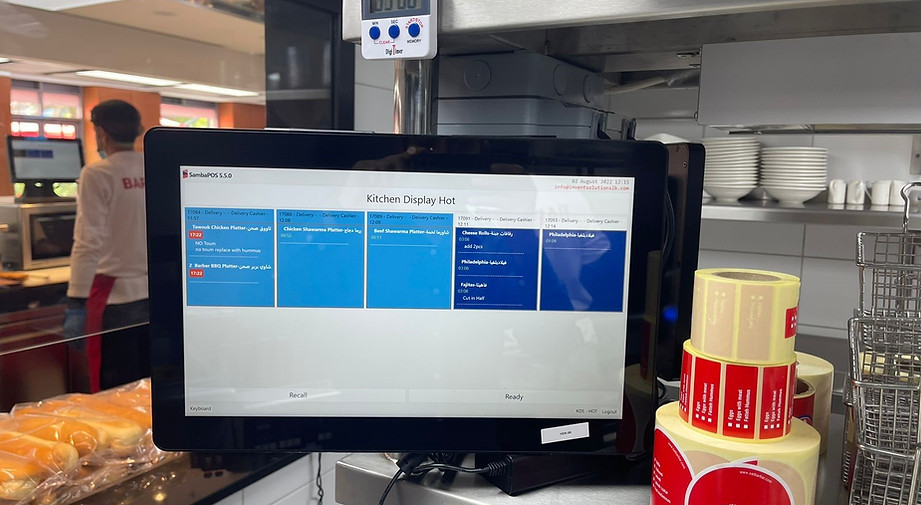

Retail and Hospitality
Outdoor self-service kiosks, menu boards, check-in stations, or drive-thru ordering systems where sunlight readability and weather resistance are key.
Transportation and Logistics
Vehicle dashboards, fleet management interfaces, passenger information displays at bus/train stations, or airport outdoor check-in points.
Manufacturing and Industrial

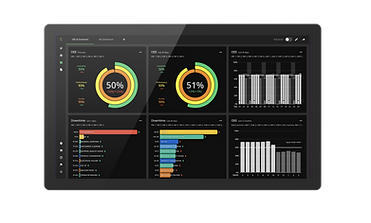

HMI (Human-Machine Interface) panels for machinery control, production monitoring, or quality inspection in factories and warehouses.
Healthcare
Outdoor patient registration kiosks, mobile medical carts, or emergency response stations requiring glove-compatible touch and easy sanitation.
Finance and Banking
Outdoor ATMs, drive-thru banking kiosks, or branch information displays with secure, responsive touch functionality.
Entertainment and Events
Interactive kiosks with AI recommendation engines and customer analytics via 2MP camera and touch interface for personalized shopping.
